Solar focus: why Concentrated Solar Power is the next big thing

Technology
Raphael Santos

By Raphael Santos
July 27, 2022

Updated
September 12, 2023

0 min read

Source: Frame Stock Footage/Shutterstock

With an 18% drop in total installed costs (2019-2020), this emerging technology can help us achieve net-zero by 2050

The world is in a joint effort to achieve a net-zero economy by 2050. The ongoing energy transition has motivated the emergence of new technologies, which promises to cause even more transformation in the renewables market.

We already know the benefits and popularity of photovoltaic panels. Its rise is also primarily due to changing consumer behavior, with new generations showing a greater commitment to clean energy.

Given this scenario, a new technology has been attracting attention recently and increasing expectations surrounding the potential of solar energy. We are talking about the buzz on concentrated solar power technology and its solution for generating electricity. But how does this work, and who are some of the players bringing the market’s attention?

Check out our analysis of this incredible solar power market.


What is Concentrated Solar Power?

Concentrated Solar Power (CSP) is the technology developed to generate electricity by converting concentrated sunlight into solar thermal energy. Mirrors reflect solar radiation to a thermal receiver. This collected solar energy is then absorbed and used to heat the so-called heat-transfer fluid (HFT).

The heat retained in the fluid is stored and then powers a turbine to generate electrical energy. As we are talking about a thermal energy storage (TES), this energy can be used later, during periods of low sunlight, and even at night.

Thermal energy also can be used in several industrial applications such as food processing and water desalination.


What are the types of concentrated solar power?

There are basically four main ways of concentrating solar power energy.

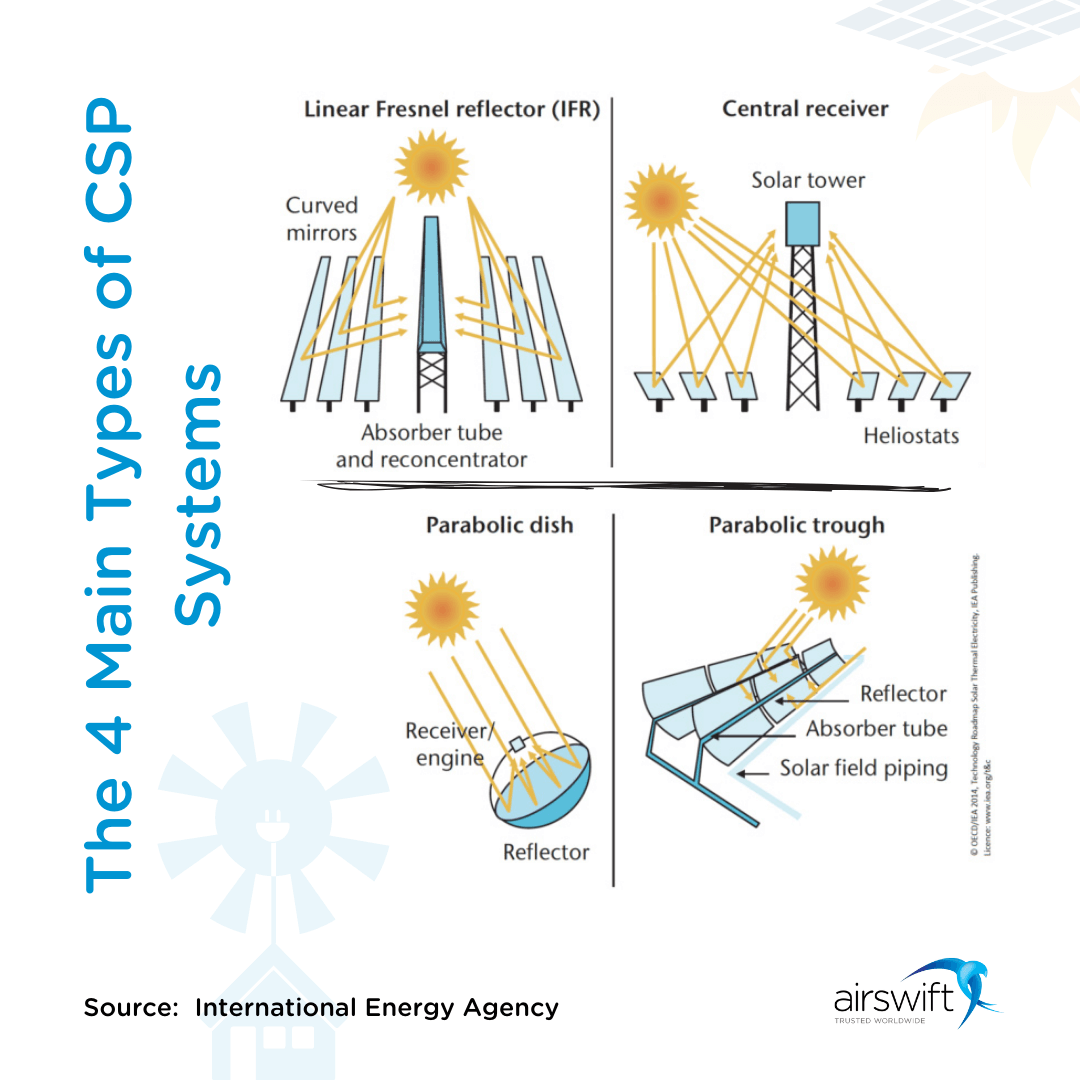

Mains types of CSP Systems

  • Linear Fresnel Reflector (IFR): The system is named as such because of its similarity with the Fresnel lens. It uses flat mirrors (or slightly curved ones) to reflect a linear concentration of sunlight.

  • Central Receiver: The system has a central receiver at the top of a tower placed as a point of solar energy concentration. The solar tower is surrounded by reflective mirrors (heliostats), which concentrate the sunlight into the heat-transfer fluid in the receiver.

  • Parabolic Dish: This mechanism is composed of parabolic mirrors, all very similar to a satellite dish. It concentrates the sunlight onto the thermal receiver placed at the focal point.

  • Parabolic Trough: Follows the same principle as the Parabolic Dish system, but instead of a dish-shaped surface, the mirrors have a U-shaped parabolic trough pattern.

How efficient is concentrated solar power?

Many factors impact the concentrated solar power efficiency; the type of system used is one of them. We already know that solar tower systems are the most efficient in generating electricity due to the high temperatures (302 °F ~ 3632 °F) reached by the sunlight concentration.

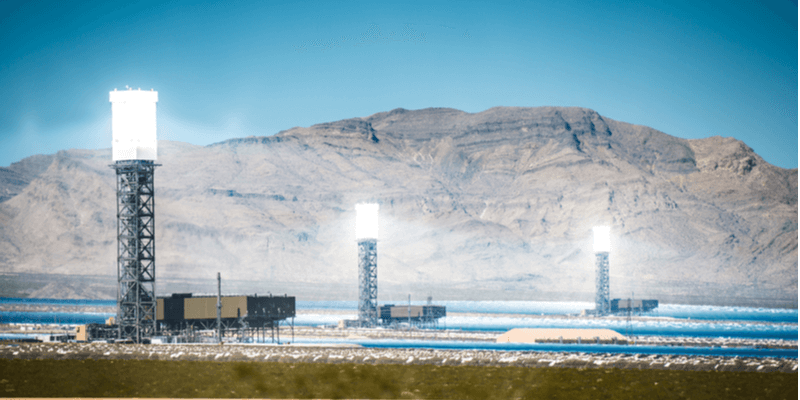

Solar Tower SystemsSource: Frame Stock Footage/Shutterstock

CSP has an efficiency of around 7% and 25%, which is very close to the results of solar photovoltaics.


What is the difference between CSP and Concentrator Photovoltaics (CPV)?

The two systems may appear to be the same but each uses different technologies. Concentrator photovoltaics converts the sunlight into electricity through PV cells made of semiconductor materials.

While the photovoltaic effect comes into play in one, the other system (CSP) uses different principles, such as the heat-transfer fluid.

What are the disadvantages of concentrated solar power?

When we talk about the disadvantages involving CSP, it is common to list the high complexity of installation and its high cost. And it's true, but whenever we bring up these items, it's within the context of comparison with photovoltaic systems.

And therein lies the error. Because, as it is a thermal energy, the correct thing would be to compare it with other thermal energy sources, such as natural gas.

What are the advantages of concentrated solar power?

We are talking about an energy whose source is the sunlight, that is, a free and abundant resource. And just like natural gas, CSP is also dispatchable.

Despite being a clean and renewable source, Concentrated solar power still lags behind natural gas when it comes to price.

But here we have a problem, as affordable as natural gas is, we are talking about an energy source that ends up leaking methane – this greenhouse gas is way more potent than carbon dioxide.

Therefore, CSP is far from being seen as a disposable or low-potential energy source. Its potential gains even more supporters when we see that this system can complement photovoltaic systems and thus help leverage the solar and wind industry.

CSP parabolic dishSource: Frame Stock Footage/Shutterstock

Is Concentrated Solar Power becoming cheaper?

This is an excellent prospect that solar energy technology has shown over the years. Just as the cost of photovoltaic panels has dropped, the cost of installing CSP has also decreased – from 2019 to 2020, there has been an 18% reduction in price.

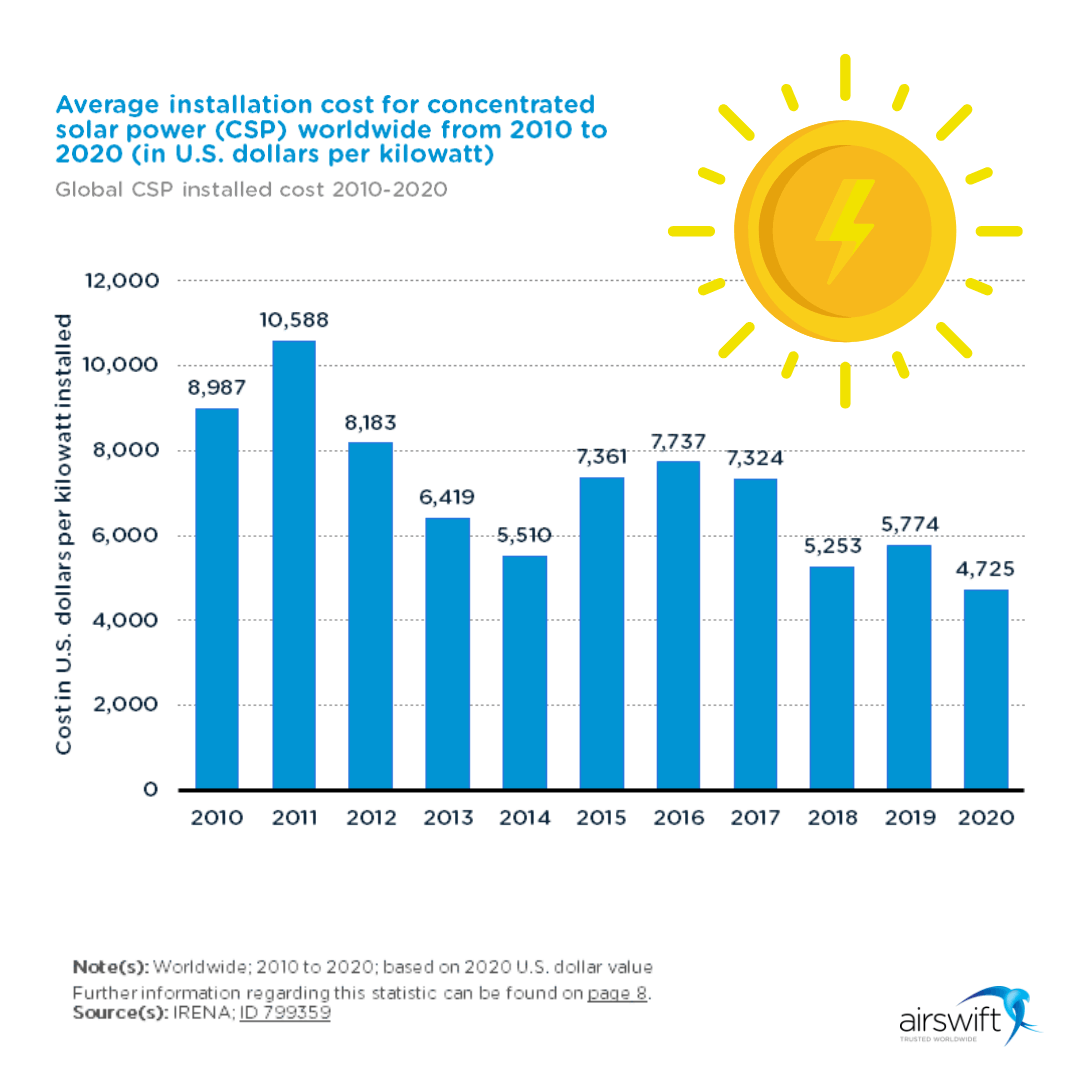

CSP installation cost over the decade


CSP Trending Companies in recent years

According to Vantage Market Research, the concentrated solar power market size is estimated at nearly USD 50 billion (2021). For the year 2050, forecasts indicate that the market could reach almost USD 60 billion.

Faced with the potential of technology and global efforts like the Paris Agreement, many venture capitalists have invested in companies responsible for shaping this solar energy niche.

Trending CSP Companies

Many of these companies like SolarSteam and Tewer Engineering work with their own software and with their own heliostats configuration. The sector, as shown below, is already spread across different continents.

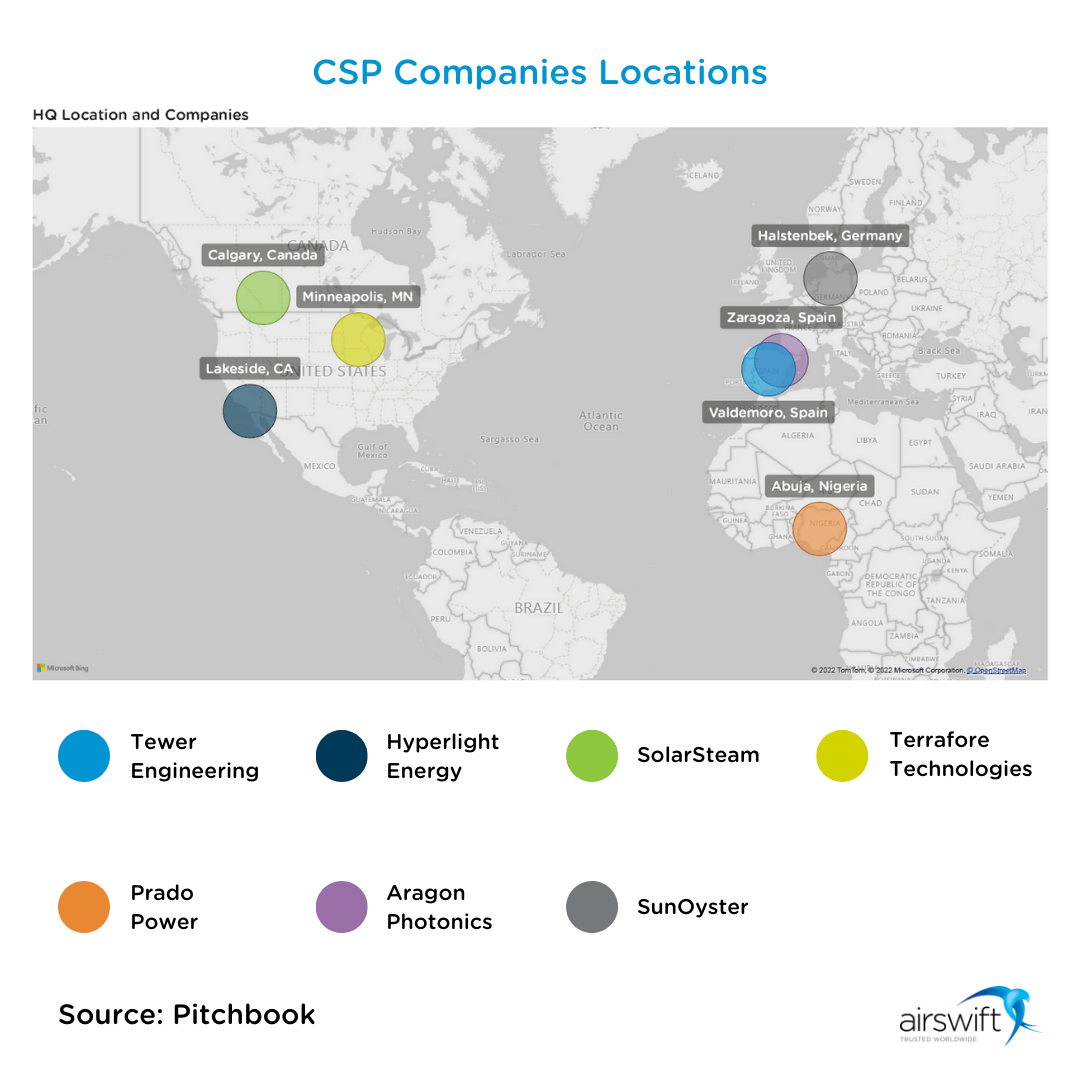

Trending CSP companies locations

This new market has benefited from the know-how of other industries such as mobility/automotive through talent acquisition. Many engineering professionals are transitioning into the energy industry, thereby increasing expertise in the renewables sector.

Some countries are already taking the lead. Investments in developing a high-skilled workforce and the ready energy infrastructure are two factors pushing the results in solar power to its maximum.

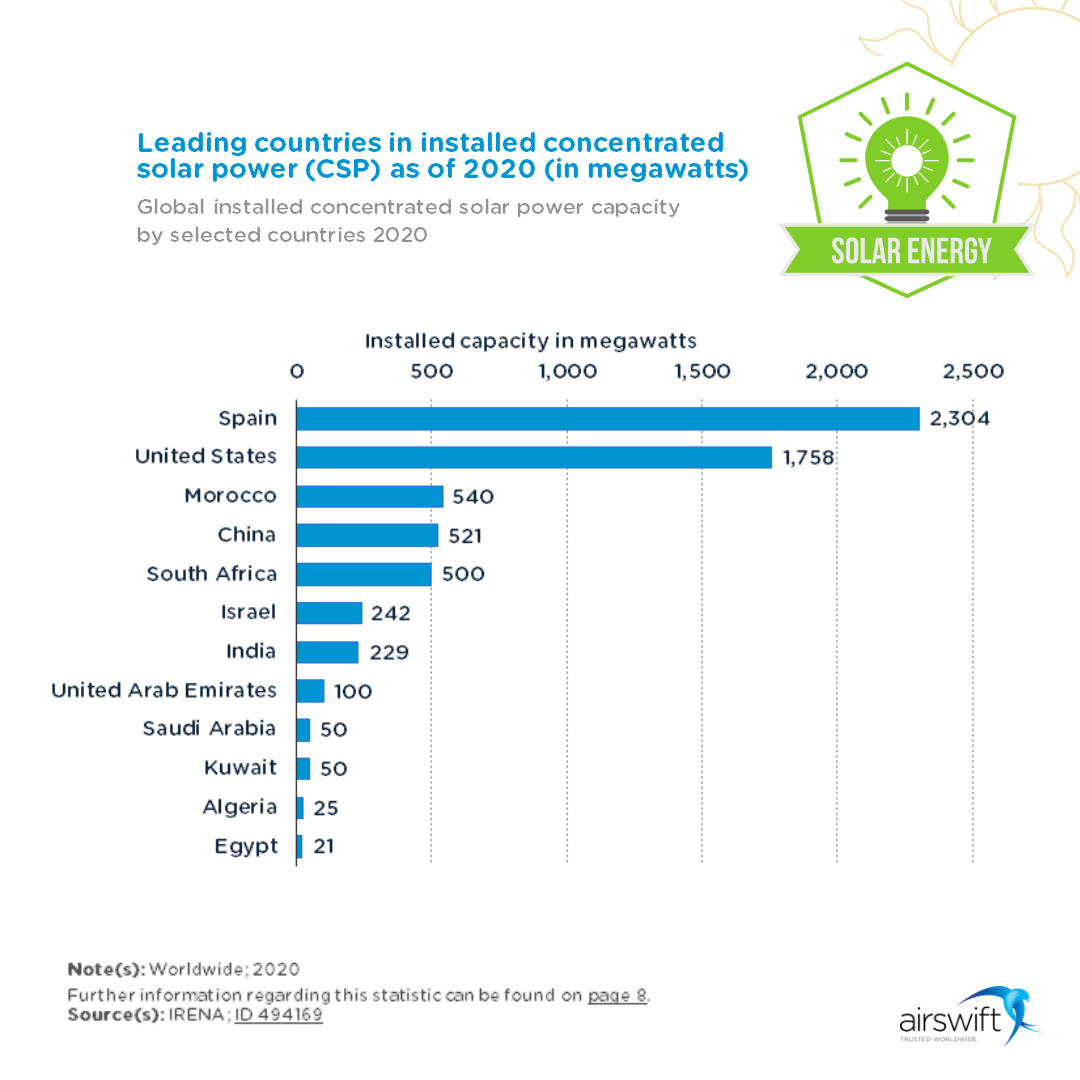

Leading countries in installed CSP systems
